The Ultimate Guide to Cleanroom Windows: Selection, Installation, and Maintenance

1. Introduction to Cleanroom Windows

1.1 What are Cleanroom Windows?

Cleanroom windows are specialized viewing panels designed for use in controlled environments. Unlike standard windows, they are engineered to meet stringent cleanliness standards, preventing the introduction of contaminants such as dust, microbes, and other airborne particles. These windows are an integral component of a cleanroom enclosure system, ensuring visual access without compromising the integrity of the controlled environment. They are typically constructed from non-shedding materials and feature a flush, sealed design to eliminate ledges where particles could accumulate.



1.2 Importance of Cleanroom Windows in Contamination Control

In a cleanroom, every component plays a role in maintaining the required level of cleanliness. Cleanroom windows are critical because they allow for the observation of processes and personnel from outside the controlled space, reducing the need for people to enter and exit the room. This minimizes particle generation from clothing, skin, and movement, which are significant sources of contamination. By enabling visual monitoring, they support procedural compliance and process oversight without breaking the cleanroom’s sterile boundary.



1.3 Applications of Cleanroom Windows

Cleanroom windows are essential in any industry that requires a highly controlled environment. Their applications are diverse and critical to product quality and safety.

Pharmaceutical and Biotechnology: Used in laboratories and manufacturing facilities to monitor drug production, cell cultures, and sterile filling processes.

Semiconductor Manufacturing: Critical for observing the fabrication of microchips and other sensitive electronics, where even a single particle can ruin a product.

Aerospace: Employed in the assembly of satellites and precision components, where a particle-free environment is necessary to prevent malfunctions.

Medical Device Manufacturing: Used to oversee the assembly of surgical instruments and implants, ensuring they meet strict cleanliness standards to prevent infection.

Hospitals and Healthcare: Installed in operating rooms and pharmacies to allow for observation while maintaining a sterile environment.

2. Understanding Cleanroom Standards and Classifications

2.1 ISO 14644 Standards Overview

The global standard for cleanrooms and associated controlled environments is ISO 14644. This standard specifies the classification of air cleanliness based on the concentration of airborne particles. It’s the primary benchmark used worldwide to measure the performance of a cleanroom. The standard outlines specific methods for testing, monitoring, and documenting the cleanliness level, ensuring that a cleanroom consistently meets its designated class. When selecting a cleanroom window, compliance with ISO 14644 is non-negotiable to guarantee it will not introduce contamination or fail under operational conditions.

2.2 Cleanroom Classes and Window Requirements

The ISO 14644 standard categorizes cleanrooms into classes, with lower numbers indicating a higher level of cleanliness (i.e., fewer particles per cubic meter). The design and material requirements for cleanroom windows become more stringent as the class number decreases.

ISO Class 5 (formerly Class 100): Extremely high-cleanliness environments used for sensitive processes like semiconductor manufacturing. Windows for this class must be ultra-flush, sealed with high-performance gaskets, and made from the most non-shedding materials available.

ISO Class 7 (formerly Class 10,000): A common standard for pharmaceutical compounding and medical device assembly. Windows for this class require a flush, sealed design to prevent particle traps, but the material and sealing may be slightly less demanding than for an ISO Class 5 environment.

ISO Class 8 (formerly Class 100,000): A more general-purpose cleanroom often used for packaging or less-sensitive assembly. While still requiring a sealed, non-shedding window, the design may be less restrictive (e.g., non-flush mounting might be acceptable in some specific cases, though flush is still preferred).

2.3 Regulatory Requirements for Cleanroom Windows

In addition to ISO standards, several regulatory bodies have specific requirements that impact cleanroom window selection, especially in industries like pharmaceuticals and food processing.

FDA (Food and Drug Administration): For facilities under FDA jurisdiction (e.g., drug and medical device manufacturers), all cleanroom components, including windows, must be designed to be easily cleanable and prevent microbial proliferation. They must withstand the harsh cleaning agents and sanitization protocols required by cGMP (Current Good Manufacturing Practice) regulations.

EU GMP Annex 1: This European standard for the manufacture of sterile medicinal products provides specific guidance on cleanroom design, emphasizing smooth, non-porous surfaces that are easy to clean and disinfect. Windows must be integrated into the wall structure without crevices or ledges.

Compliance with both international standards and industry-specific regulations is crucial to avoid costly remediation and ensure the operational integrity of the cleanroom.

3. Key Considerations for Selecting Cleanroom Windows

Choosing the right cleanroom window is a critical decision that impacts a facility’s contamination control, operational efficiency, and long-term costs. The following factors must be carefully evaluated.

3.1 Material Selection (Glass, Acrylic, Polycarbonate)

The window material is a primary factor influencing performance, durability, and cost.

Glass:

Pros: Highly scratch-resistant, excellent chemical resistance, easy to clean, and provides superior optical clarity. Laminated or tempered glass can offer enhanced safety and fire-rating.

Cons: Heavier and more expensive than plastic alternatives. Can be a safety hazard if it shatters (unless laminated or tempered).

Acrylic (PMMA):

Pros: Lighter and more affordable than glass. Offers good optical clarity and is relatively easy to fabricate.

Cons: Prone to scratching, which can create particle traps over time. Less resistant to certain chemicals, particularly alcohol-based cleaners.

Polycarbonate:

Pros: Extremely impact-resistant and durable, making it ideal for high-traffic or safety-critical areas. Lighter than glass.

Cons: Can yellow over time with UV exposure. Like acrylic, it is more susceptible to scratching and chemical damage than glass.

3.2 Window Size and Placement

The size and placement of windows should be strategically planned to maximize visibility while minimizing disruption to airflow and wall integrity.

Size: The window should be large enough to provide a clear view of the area being monitored but not so large that it compromises the structural integrity of the cleanroom wall or ceiling. Large windows can also increase thermal transfer, impacting HVAC efficiency.

Placement: Windows should be positioned to provide clear sightlines to critical processes or equipment. Avoid placing them directly in the path of laminar airflow to prevent turbulence. The ergonomic placement for workers is also important to consider.

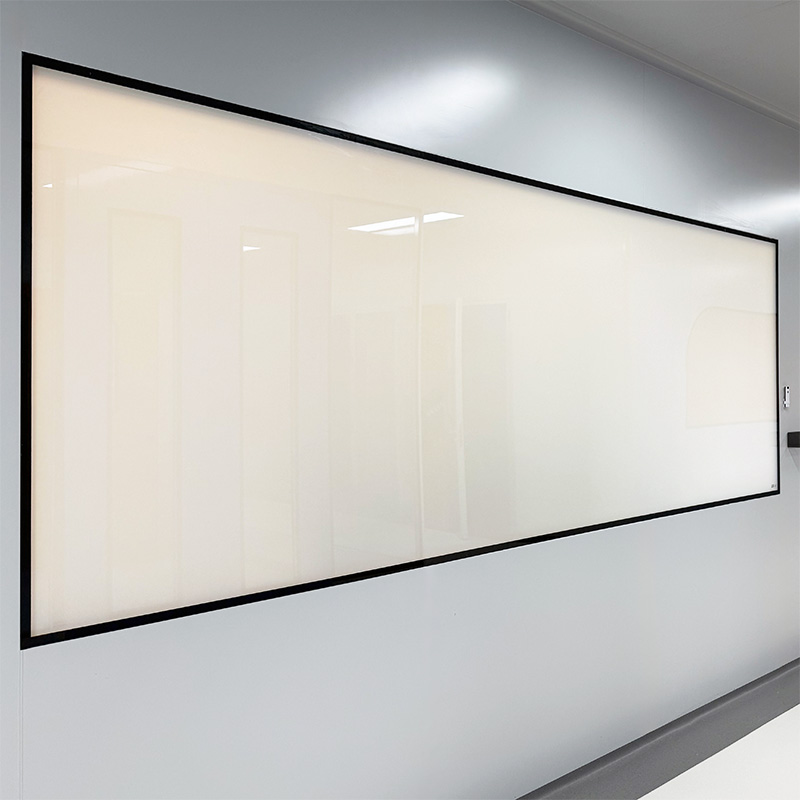

3.3 Flush vs. Non-Flush Mounting

This is a defining characteristic of cleanroom window design and has significant implications for contamination control.

Flush Mounting: The window pane is installed completely flush with the surface of the wall on both the inside and outside. This design eliminates any ledges, gaps, or crevices where particles can settle and microbes can grow. Flush mounting is the gold standard for high-class cleanrooms (ISO 5 and 7) as it provides a smooth, easily sanitizable surface.

Non-Flush Mounting: The window frame sits on top of the wall surface, creating a small lip or ledge. While easier and less expensive to install, this design creates particle accumulation points that make it unsuitable for stricter cleanroom classifications.

3.4 Thermal Performance and Energy Efficiency

Cleanroom environments require precise temperature and humidity control, making thermal performance a key factor. Double-glazed or insulated windows with low-emissivity (Low-E) coatings can significantly reduce thermal transfer. This not only helps maintain a stable internal environment but also reduces the load on the HVAC system, leading to substantial energy savings.

3.5 Air Tightness and Sealing

An airtight seal is paramount to preventing pressure differentials and stopping contaminated air from leaking into the cleanroom. High-quality gaskets, such as silicone or EPDM, and proper sealing techniques are essential. The seal must be durable and resistant to the chemicals used for cleaning and sanitization to maintain its integrity over the long term. A robust seal ensures the cleanroom’s air pressure cascade remains intact.

4. Types of Cleanroom Windows

Cleanroom windows come in various types, each designed to meet specific functional and safety requirements within a controlled environment.

4.1 Fixed Windows

Fixed windows are the most common type of cleanroom window. They are permanently sealed into the wall system and provide a simple, unobstructed view. Their primary function is visual observation, and they are essential for applications where processes need to be monitored without physical interaction. Their robust, sealed design makes them a cornerstone of contamination control in most cleanroom classifications.

4.2 Pass-Through Windows

Pass-through windows are a specialized type of window that doubles as a material transfer point. They consist of two airtight, interlocking doors, one on the cleanroom side and one on the outside. This design allows items to be transferred into and out of the cleanroom without the need for personnel to enter, minimizing particle generation and maintaining air pressure integrity. Pass-through windows are a critical component for labs and manufacturing facilities that handle sensitive materials or equipment.

4.3 Fire-Rated Windows

In facilities where fire safety is a concern, fire-rated cleanroom windows are a necessity. These windows are constructed with specialized fire-resistant glass and framing materials that can withstand high temperatures for a specified duration (e.g., 60 or 90 minutes). They are crucial for maintaining the integrity of a fire-rated cleanroom wall, preventing the spread of flames and smoke while still providing the required visual access.

4.4 Laminated Windows

Laminated windows are made by bonding a layer of plastic (typically polyvinyl butyral, or PVB) between two or more layers of glass. This construction provides several key benefits:

Safety: If the window breaks, the glass fragments remain adhered to the plastic layer, preventing the release of dangerous shards and, more importantly in a cleanroom, preventing the generation of glass particles.

Sound Dampening: The laminated layer helps to reduce noise transmission, a valuable feature in environments with loud machinery or where acoustic control is important.

UV Protection: The interlayer can block a significant amount of UV radiation, which is beneficial for protecting light-sensitive products or processes.

4.5 Frameless Windows

Frameless windows represent the pinnacle of cleanroom window design for contamination control. They are installed with a completely flush, seamless integration into the wall panel, with no visible frame or trim. This design eliminates every possible crevice, gap, or ledge where particles could accumulate. Frameless windows are often the preferred choice for the most demanding cleanroom classifications (e.g., ISO 5), where a perfectly smooth and sanitizable surface is non-negotiable. They offer a sleek, modern aesthetic in addition to their functional benefits.

5. Cleanroom Window Design Best Practices

Effective cleanroom window design goes beyond simply choosing a material. It requires a holistic approach that considers the window’s role in the overall cleanroom environment. Following these best practices ensures the window contributes to, rather than detracts from, contamination control and operational efficiency.

5.1 Minimizing Particle Accumulation

The fundamental design principle for any cleanroom component is to eliminate surfaces where particles can settle.

Flush Integration: The most effective way to prevent particle accumulation is to use a flush-mounted window system. This means the window pane is perfectly level with the surrounding wall surface, leaving no ledges, seams, or crevices.

Beveled Edges: For applications where a flush mount isn’t feasible or necessary, beveled or radiused edges on the window frame can significantly reduce the surface area available for particle collection. This design guides particles to fall to the floor where they can be removed by the cleanroom’s airflow.

Smooth Surfaces: All window materials and frames should have a smooth, non-porous finish that is easy to wipe down and resistant to shedding.

5.2 Ensuring Airflow

Cleanroom airflow is a meticulously engineered system designed to continuously sweep particles away from critical areas. Window design must support this process, not hinder it.

Avoid Obstruction: Windows should be placed to avoid disrupting the directional airflow, particularly in laminar flow cleanrooms where a uniform air stream is essential. Placing windows on return air walls or in areas with less critical airflow is a common strategy.

Integration with Air Walls: Some advanced cleanroom systems integrate windows directly into the return air walls. This design ensures that the window does not create turbulence and that the wall itself remains a functional part of the airflow system.

Airtightness: A perfectly sealed window is crucial. Any air leakage can create unwanted pressure fluctuations and introduce unfiltered air, compromising the entire cleanroom’s airflow and pressure cascade.

5.3 Ergonomics and Visibility

Cleanroom windows are a key ergonomic tool that enhances safety and productivity.

Strategic Placement: Windows should be placed at an ergonomic height to allow for comfortable viewing of processes without requiring staff to bend, strain, or use a step stool.

Optimal Size: The window should be sized to provide a clear, panoramic view of the work area, reducing the need for personnel to constantly move to different vantage points.

Safety and Observation: By allowing outside personnel to monitor activity inside the cleanroom, windows reduce the risk of collisions and other incidents that could occur with limited visibility. They also facilitate training and supervision without the need for additional gowning and entry procedures.

5.4 Integration with Cleanroom Walls and Ceilings

The window is not a standalone component; it is an integrated part of the cleanroom’s structural envelope.

Modular Systems: Many modern cleanrooms use modular wall systems, and windows are designed as interchangeable modules. This allows for seamless, factory-engineered integration and simplifies future reconfigurations.

Consistent Materials: The window frame, seals, and wall surfaces should be made from compatible, non-shedding, and chemical-resistant materials to ensure a smooth, continuous surface that is easy to clean and sanitize.

Joint and Seal Design: All joints where the window meets the wall and ceiling must be meticulously sealed to prevent particle accumulation and air leaks. This often involves the use of cleanroom-grade silicone or specialized gasketing systems that are resistant to common cleaning agents.

6. Installation of Cleanroom Windows

Proper installation is arguably the most critical step in ensuring a cleanroom window performs as intended. Even the highest-quality window can fail to meet standards if it is not installed correctly. This process requires precision, attention to detail, and a thorough understanding of cleanroom protocols.

6.1 Preparing the Opening

Before the window is even on-site, the wall opening must be meticulously prepared.

Precise Measurements: The opening must be cut to the exact dimensions specified by the window manufacturer. Any deviation can lead to an improper fit, compromising the seal and creating gaps.

Framing: The opening should be framed with a rigid material, such as metal or a composite, to provide a stable, level surface for the window to be mounted against.

Cleanliness: The entire area around the opening must be thoroughly cleaned and free of dust, debris, and any construction-related particles before the window is brought in.

6.2 Sealing Techniques

The seal is the most important element of a cleanroom window installation, as it prevents air leaks and particle ingress.

Gaskets and Seals: Cleanroom windows are typically supplied with high-performance gaskets, often made of silicone or EPDM, that are compressed during installation to create an airtight seal. These gaskets must be properly positioned and not twisted or damaged.

Cleanroom-Grade Sealants: In addition to gaskets, a cleanroom-grade sealant (such as a neutral-cure silicone) is often applied to the perimeter of the window. This sealant must be non-shedding, non-outgassing, and resistant to the cleaning agents used in the cleanroom.

Double-Sided Sealing: For double-glazed windows or in applications where the highest level of airtightness is required, the window may be sealed on both the cleanroom and the non-cleanroom side of the wall.

6.3 Ensuring a Flush and Airtight Seal

Achieving a flush and airtight seal is the primary goal of the installation process.

Pressure and Clamping: Windows are often installed using a clamping or snap-in system that applies even pressure around the perimeter. This ensures a uniform seal and prevents bowing or warping of the frame.

No Gaps or Protrusions: The final installed window must sit perfectly flush with the wall surface, with no visible gaps or ledges. Any protrusion or recess, no matter how small, can become a particle trap.

Testing: After installation, the window’s airtightness should be verified. This can be done using a simple smoke test or, more formally, as part of the cleanroom’s overall pressure differential testing.

6.4 Tools and Equipment

Specialized tools and cleanroom-compatible equipment are necessary for a successful installation.

Cleanroom-Approved Tools: All tools, from drills to screwdrivers, must be cleaned and decontaminated before entering the cleanroom. Avoid tools that can shed metal shavings or other particles.

Personal Protective Equipment (PPE): Installation staff must wear appropriate cleanroom attire, including coveralls, hairnets, and gloves, to prevent personal contamination of the work area.

Lifting Equipment: For large or heavy windows, appropriate lifting equipment (e.g., suction cups) should be used to prevent damage to the glass and ensure safe handling.

6.5 Installation Checklist

A detailed checklist is essential to ensure every step of the installation process is followed.

Verify all measurements and materials are correct.

Confirm the wall opening is clean and prepared.

Ensure all tools and personnel are properly gowned and decontaminated.

Install the window according to the manufacturer’s instructions.

Apply all gaskets and sealants with precision.

Confirm the window is flush and the seal is airtight.

Conduct a final inspection and cleanliness check before commissioning.

7. Cleaning and Maintenance

Proper cleaning and maintenance are essential for preserving the integrity and performance of cleanroom windows over their lifetime. A window that is not correctly maintained can become a source of contamination, a risk to operations, and a costly liability.

7.1 Recommended Cleaning Products and Procedures

The choice of cleaning products and the method of application are critical to avoiding damage and maintaining cleanliness.

Approved Cleaners: Use only cleaning agents specifically approved for cleanroom use. These are typically non-shedding, low-residue, and compatible with the window material and seals. Avoid harsh, abrasive cleaners that can scratch surfaces or degrade sealants.

Non-Abrasive Wipes: Use lint-free, non-abrasive microfiber or polyester wipes. Paper towels and other fibrous materials can leave behind particles and lint.

Two-Step Process: A common procedure is a two-step process: first, use a cleanroom-approved detergent or solvent to remove dirt and residue. Second, follow up with a sterile, deionized water rinse or a wipe to remove any remaining residue.

Directional Wiping: Always wipe in a consistent direction, typically from top to bottom, to avoid spreading particles. Never wipe in a circular motion, as this can trap contaminants and create streaks.

7.2 Frequency of Cleaning

The frequency of cleaning depends on the cleanroom’s classification and operational protocols.

ISO Class 5 and 7: In these high-class environments, windows should be cleaned daily or even multiple times a day as part of the routine operational clean.

ISO Class 8: In less stringent cleanrooms, cleaning may be performed on a weekly or as-needed basis, but a regular schedule should be maintained.

After Spills or Construction: Any time a spill occurs or maintenance work is performed nearby, the window should be immediately and thoroughly cleaned.

7.3 Inspection and Maintenance Checklist

A regular inspection schedule helps to catch minor issues before they become major problems.

Visual Inspection: Regularly check the window for visible signs of damage, such as scratches, cracks, or discoloration. Pay close attention to the perimeter.

Seal Integrity: Inspect the seals and gaskets for any signs of deterioration, cracking, or loss of adhesion. A failing seal is a direct threat to the cleanroom’s integrity.

Flushness: Confirm that the window remains flush with the wall surface. Any bowing or separation can indicate a problem with the installation or the wall system itself.

Frame and Hardware: Check any visible frames or mounting hardware for signs of corrosion or looseness.

7.4 Preventing Scratches and Damage

Preventing damage is far more effective and less costly than repairing it.

Proper Tool Usage: Never use sharp tools or abrasive sponges to clean or work near the windows.

Protective Films: During construction or maintenance, apply a temporary protective film to the window surface to prevent scratches from tools or debris.

Educate Personnel: Train all staff on the proper handling and cleaning procedures for cleanroom windows. This includes a clear understanding of which tools and cleaners are prohibited.

Avoid Harsh Chemicals: Be sure that the cleaning agents used are compatible with the specific window material and the sealing system. Some common chemicals can cause acrylic to craze or degrade silicone seals.

8. Troubleshooting Common Issues

Even with proper selection, installation, and maintenance, cleanroom windows can occasionally present issues. Being able to quickly identify and address these problems is crucial for maintaining the integrity of the controlled environment.

8.1 Air Leaks

Air leaks are a primary concern, as they can compromise the cleanroom’s pressure differential and introduce unfiltered air.

Cause: The most common causes are a failed or improperly installed seal, a damaged gasket, or a crack in the window frame or panel.

Detection: Air leaks can often be detected during the cleanroom’s regular pressure differential monitoring. A more direct method is a smoke test, where a small amount of non-contaminating smoke is introduced near the window to see if it’s drawn in or pushed out.

Solution: If a leak is found, the affected area must be sealed immediately. For a minor leak, this may involve applying a fresh bead of cleanroom-grade sealant. For a major failure, the gasket may need to be replaced, or in severe cases, the window itself may need to be reinstalled.

8.2 Condensation

Condensation on a cleanroom window can be a sign of a more serious problem, such as a breach in the window’s seal or an issue with the cleanroom’s HVAC system.

Cause: Condensation forms when warm, moist air meets a cold surface. In a cleanroom, this often indicates a breach in the double-glazed seal, allowing moisture to enter the space between the panes. It can also be a symptom of a significant humidity control problem within the cleanroom itself.

Detection: Visible moisture or fogging between the glass panes is a clear indicator of a failed seal. Condensation on the cleanroom side of the window may point to a humidity control issue.

Solution: For a failed double-glazed seal, the window unit must be replaced. If condensation is on the interior surface, the cleanroom’s HVAC system and humidity controls should be inspected and recalibrated.

8.3 Scratches and Cracks

Scratches and cracks are not just cosmetic issues; they can become reservoirs for particles and microbes, making them a serious contamination risk.

Cause: Scratches are typically caused by abrasive cleaning materials or improper handling of tools. Cracks can result from impact or improper installation that places stress on the window pane.

Detection: A visual inspection is usually sufficient to spot scratches and cracks. Pay close attention during cleaning, as scratches often become more visible when the surface is wet.

Solution: Minor, surface-level scratches on plastic windows (acrylic or polycarbonate) can sometimes be polished out with a specialized cleanroom polishing kit. However, deep scratches or cracks in any material require the window pane to be replaced entirely to ensure the cleanroom’s integrity is not compromised.

8.4 Seal Deterioration

The seals and gaskets are the most vulnerable parts of a cleanroom window and are subject to wear and tear from cleaning and environmental factors.

Cause: Prolonged exposure to cleaning chemicals, UV light, or physical stress can cause seals to harden, crack, or lose their adhesive properties.

Detection: A visual inspection of the perimeter seal is the best way to detect deterioration. Look for signs of cracking, peeling, or a loss of flexibility in the material.

Solution: Minor seal deterioration can sometimes be addressed by carefully removing the old sealant and applying a new, fresh bead of cleanroom-grade sealant. If the underlying gasket is the problem, the window may need to be uninstalled and a new gasket applied before re-installation. Regular inspection and proactive replacement are key to preventing a catastrophic seal failure.

9. Future Trends in Cleanroom Window Technology

The field of cleanroom technology is constantly evolving, driven by the demand for greater efficiency, improved contamination control, and enhanced safety. Cleanroom windows are no exception. Here are some of the key trends shaping the future of this essential component.

9.1 Smart Windows

Smart windows, also known as dynamic or switchable glass, are poised to revolutionize cleanroom design. These windows can change their properties in response to an electrical current, light, or heat.

Privacy on Demand: Electrochromic glass can switch from transparent to opaque instantly, providing visual privacy without the need for blinds or curtains, which can be significant particle generators. This is especially useful for separating different process areas or for confidential operations.

Lighting and Energy Control: Smart windows can also adjust their tint to control the amount of light and heat entering the cleanroom. This helps to reduce glare for personnel, protect light-sensitive processes, and significantly lower the energy costs associated with HVAC and lighting systems.

Integrated Displays: Future cleanroom windows may feature integrated display technology, allowing for the real-time display of cleanroom parameters (e.g., temperature, humidity, particle count) directly on the window surface, providing critical information at a glance.

9.2 Self-Cleaning Windows

The pursuit of a maintenance-free cleanroom is leading to innovations in materials science. Self-cleaning windows, which are already available in other applications, are a growing trend for controlled environments.

Hydrophilic Coatings: These coatings use a photocatalytic process activated by UV light (from sunlight or indoor lighting) to break down organic dirt and grime. The surface is also super-hydrophilic, meaning water spreads across it in a uniform sheet rather than beading up. This allows for a gentle, uniform rinse that washes away the broken-down contaminants, reducing the need for manual cleaning.

Antimicrobial Surfaces: As cleanrooms increasingly focus on biosecurity, windows with integrated antimicrobial properties are gaining traction. These surfaces use materials like silver or copper nanoparticles to inhibit the growth of bacteria and other microbes, adding another layer of contamination control.

9.3 Improved Materials

Material science continues to advance, offering new possibilities for cleanroom window design.

Advanced Composites: New composite materials are being developed that offer the durability of glass with the light weight and impact resistance of plastics. These materials will provide a better balance of performance, cost, and safety.

Transparent Polymers: Research into next-generation transparent polymers is focused on creating materials that are even more scratch-resistant than glass while maintaining the flexibility and impact resistance of polycarbonate. This will lead to more durable and long-lasting window solutions.

Sustainable Materials: As sustainability becomes a global priority, the cleanroom industry is exploring the use of recyclable and eco-friendly materials for windows and their frames, without compromising on performance or cleanliness standards.

These trends highlight a shift towards cleanroom windows that are not just passive viewing panels but active, intelligent components that enhance the overall performance, efficiency, and safety of the controlled environment.

10. Conclusion

10.1 Recap of Key Considerations

This guide has explored the multifaceted world of cleanroom windows, demonstrating that they are far more than simple panes of glass. From the foundational principles of ISO 14644 classification to the nuances of material selection and the critical importance of a flush, airtight seal, every aspect of a cleanroom window’s design and function is tied to the central goal of contamination control. We have covered the different types of windows available, the best practices for their design and installation, and the essential steps for maintaining them over their operational life.

10.2 Importance of Proper Selection, Installation, and Maintenance

The key takeaway is that the success of a cleanroom window is not a matter of a single decision but a continuous process. Choosing the correct window for a specific cleanroom class is vital. However, that choice must be followed by a flawless installation to ensure airtightness and flushness. Finally, a strict and consistent maintenance routine is necessary to prevent the window from becoming a source of contamination over time. A failure at any one of these stages can compromise the entire cleanroom environment, leading to costly product loss, regulatory non-compliance, and potential safety risks.

10.3 Resources for Further Information

For those looking to delve deeper, a wealth of resources is available. Cleanroom manufacturers and suppliers are excellent sources of detailed product specifications and installation guides. Industry associations and standards organizations, such as the International Organization for Standardization (ISO) and the Controlled Environment Testing Association (CETA), provide the latest guidelines and best practices. Consulting with a cleanroom design and construction specialist is always recommended to ensure that the windows you choose are perfectly integrated into your facility’s unique requirements.

By approaching cleanroom windows with the diligence they deserve, you can ensure they serve as a valuable asset, providing visibility and oversight while upholding the pristine, controlled environment that is the very definition of a cleanroom.
