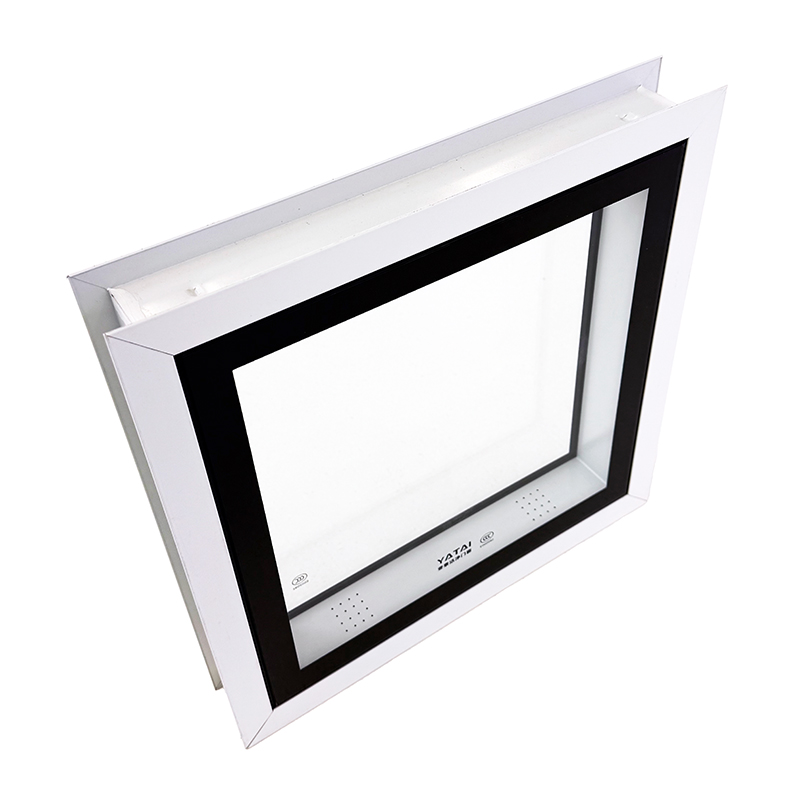

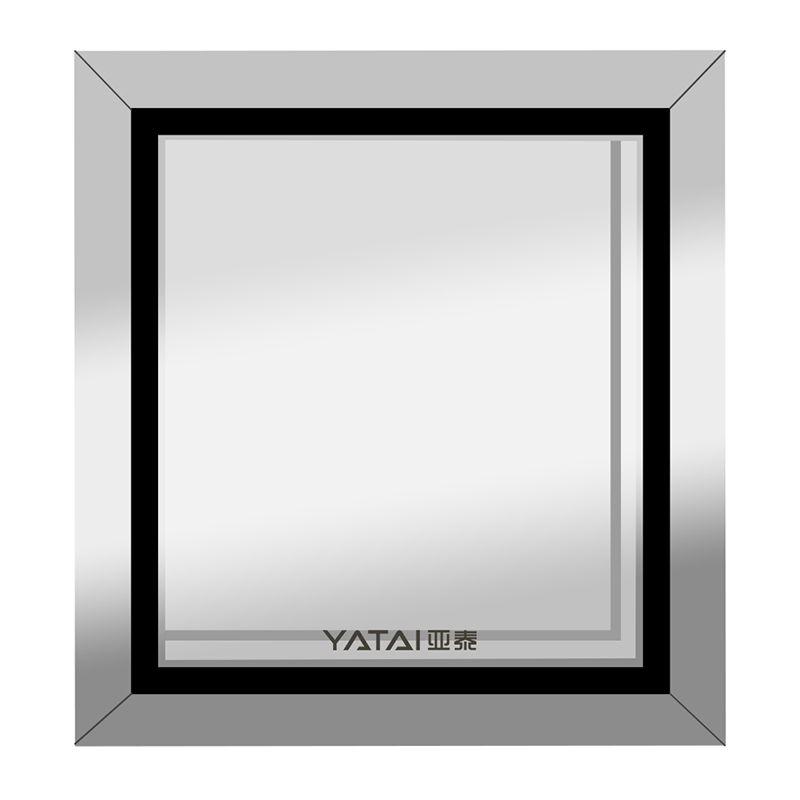

Hollow Double-Layer Glass Cleanroom Window

Hollow double-layer glass cleanroom window is a high-performance window system designed for clean rooms. With its good sound insulation, cleanliness and anti-pollution functions, it has become an ideal choice in modern clean room environments.

Get A Quote Download

PREV：No previous article NEXT：No next article

Parameter
Contact Us

Technical parameters

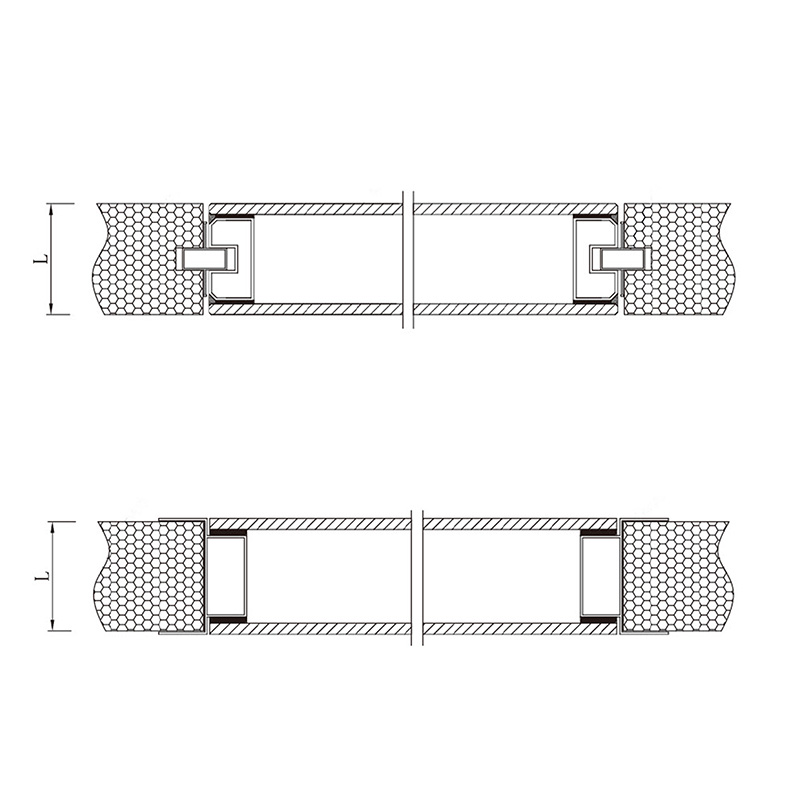

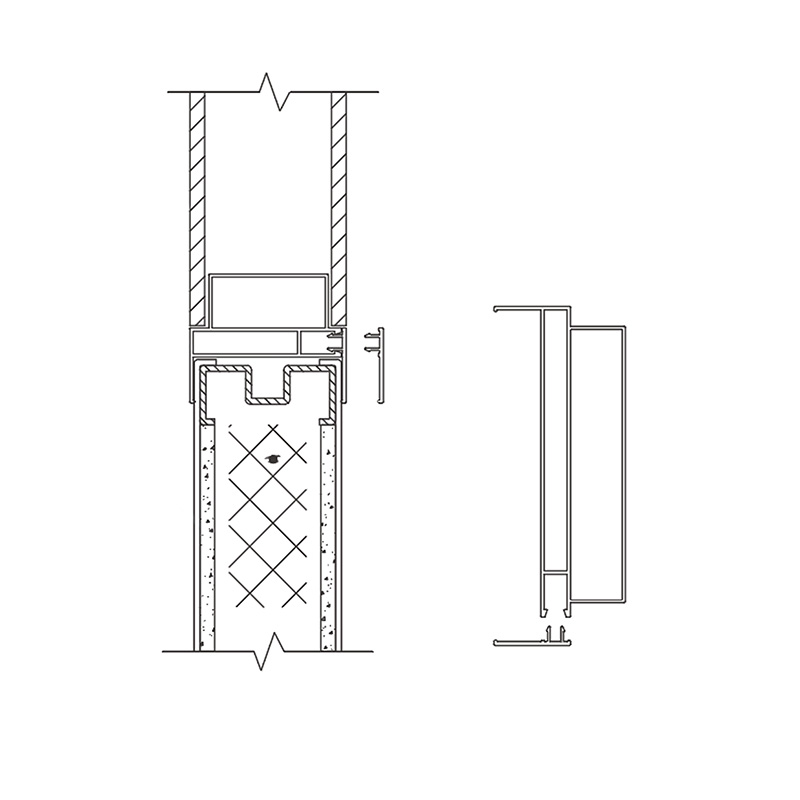

Window frame connections	Flat frame type, encircle frame type, butt clamp type, pair of clamping type, etc. (according to customer requirements)
Window frame materials	Stainless steel 1.2mm, aluminum alloy 1.5mm toughened glass
Nature of glass	Reinforced Glass	Fire-resistant glass Fire-resistant 90 minutes	Explosion-proof glass	Dimming glass
Suggested Glass Options	Length ≤1500mm: 5.0~6.0mm, ≥1500~2500mm: 8.0mm.

Model: SCC-50-100
Specifications: conventional, non-standard, user-specific design is acceptable
Material: Window frame is made of aluminum alloy, SUS304 stainless steel; glass is made of 5mm tempered
Seal: sealing strip, silicone
Color: black printing, white printing
Use: suitable for workshops such as pharmaceutical factories, food, biology, and electronics factories
Features: Double-layer printed clean window has good sealing performance, the wall and window are on the same plane, flexible installation, and beautiful appearance. It can be made according to different wall thicknesses, especially suitable for 50~100mm thick color steel plates, double-layer windows, hollow type, and moisture-proof type.
Performance:
Sound insulation: Meet people's needs for lighting, viewing, decoration, and environmental protection. Generally, hollow glass can reduce noise by about 30 decibels, and hollow glass filled with inert gas can reduce noise by about 5 decibels on the original basis, which can reduce 80 decibels of noise to 45 decibels, which is extremely quiet.
It has good thermal insulation performance: the K value of the thermal conductivity system, the K value of a single 6mm glass is 5.75kcal/mh°C, the K value of a general insulating glass is 1.4-2.9kcal/mh°C, and the K value of an insulating glass filled with argon and sulfur fluoride gas can be reduced to 1.19kcal/mh°C. Argon is mainly used to reduce the K value of thermal conduction, and sulfur difluoride gas is mainly used to reduce the dB value of noise. The two gases can be used alone or mixed in a certain proportion.
Anti-frost: In winter, when the temperature difference between indoor and outdoor is large, single-layer glass doors and windows will frost, while there will be no frost when using insulating glass.

Remarks: We can accept customers' requirements to make non-standard products with different specifications and models, and the doors and windows can be made of different shapes and grades of glass, such as tempered glass, fireproof glass, and bulletproof glass.
