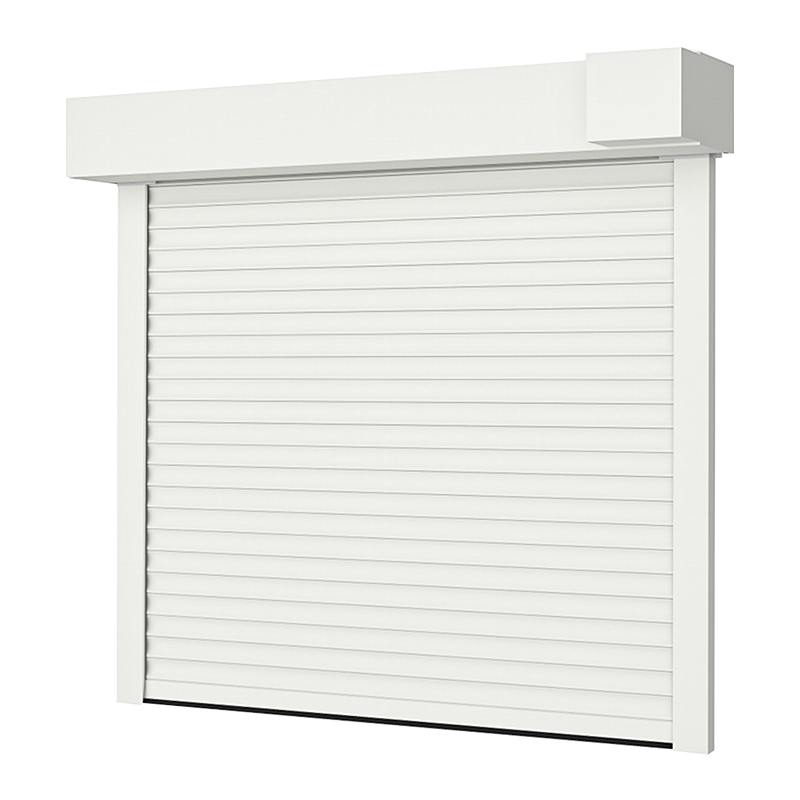

Composite Material High Speed Roll up Doors

Composite rapid rolling doors, made from a combination of various materials and featuring rapid opening and closing capabilities, are widely used in industrial and commercial applications. They can be used in cold storage and cleanrooms to prevent condensation from contaminating production lines and ensure product quality. In warehouses in coastal areas or rainy cities, they protect goods from moisture damage. In temperature-controlled workshops in industries like electronics and chemicals, they effectively block internal and external temperature fluctuations, minimizing energy loss and reducing the load on air conditioning systems.

Get A Quote Download

PREV：No previous product NEXT：No next product

Parameter
Contact Us

Product Characteristics

Curtain Material: Mostly a double-layer polyester fiber base fabric is filled with insulating materials such as polyurethane foam. Some products also feature an embedded fiberglass mesh reinforcement layer. Some products are coated on both sides with PVDF for enhanced performance.
Frame Material: Typically, galvanized steel sheets from Baosteel are laser-cut and formed in one step. Some also use 304 stainless steel or oxidation-resistant aluminum alloy profiles for enhanced corrosion resistance.
Other materials, such as aluminum alloy wind bars, enhance the overall strength and wind resistance of the door. A U-shaped PVC-based air barrier or rubber sealing strip is also installed at the bottom, and brush seals or rubber sealing strips are installed on both sides of the door frame to improve sealing.
Operating Principle: The door curtain consists of five main systems: door frame, curtain, drive, control, and safety. The motor in the drive system drives the brake, which in turn drives the drum through a speed reducer, allowing the curtain to rise and fall rapidly along the track, enabling rapid door opening and closing. The opening and closing speed can be adjusted via a controller.

Product Performance

Thermal Insulation: The multi-layer composite curtain fabric structure and high-efficiency thermal insulation materials provide low thermal conductivity, effectively reducing heat exchange and maintaining a stable indoor temperature.
Fast Opening and Closing: Opening and closing speeds typically reach 0.6-1.5 meters per second, or even faster, enabling extremely quick opening and closing, reducing indoor and outdoor air convection.
Excellent Sealing: The bottom is equipped with an airbag sealing system and the track adopts a zipper-type sealing design, achieving an IP54 protection rating and above, effectively preventing indoor and outdoor air convection.
Safety and Reliability: Equipped with infrared photoelectric protection and an airbag bottom edge, the system automatically stops or reverses when an obstacle is detected, protecting personnel and cargo.
Strong Wind Resistance: Some products utilize specially designed transverse reinforcement ribs, aluminum alloy sectional door panels, and a bottom wind deflector structure to enhance wind pressure resistance, capable of withstanding winds exceeding force 10.

Professional Manufacturer of Cleanroom Enclosure System Jiangyin Yatai Purification Equipment Technology Co., Ltd.

Located in Jiangyin City, Jiangsu Province, on the south bank of the Yangtze River in the core area of the Yangtze River Delta, Jiangyin Yatai Purification Equipment Technology Co., Ltd. specializes in manufacturing high-performance cleanroom doors, windows, and related products. The company mainly specializes in the production of various types of YT clean door and window series, steel doors, melamine doors, clean windows, ward doors, automatic closed doors, anti-collision doors, medical doors, electric swing doors, clean doors, aluminum alloy clean doors, fast rolling doors, insulation and fireproof clean doors and dozens of other varieties. Professional Composite Material High Speed Roll up Doors Suppliers.

The company has a complete R&D, design, manufacturing and sales system, specializing in providing clean door and window series for sterile and dust-free workshops such as pharmaceuticals, electronics, biology, food, and hospital operating rooms. In terms of certification qualifications. As Custom Composite Material High Speed Roll up Doors Factory, we have passed the ISO9001 quality certification system and have successively obtained a number of practical proprietary certificates and a number of honorary certificates.
