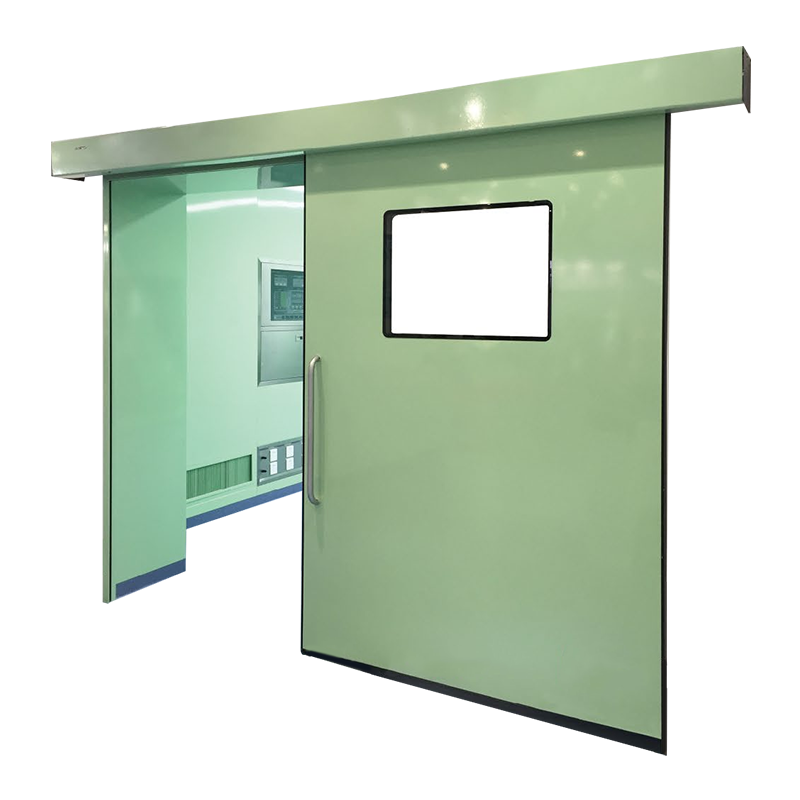

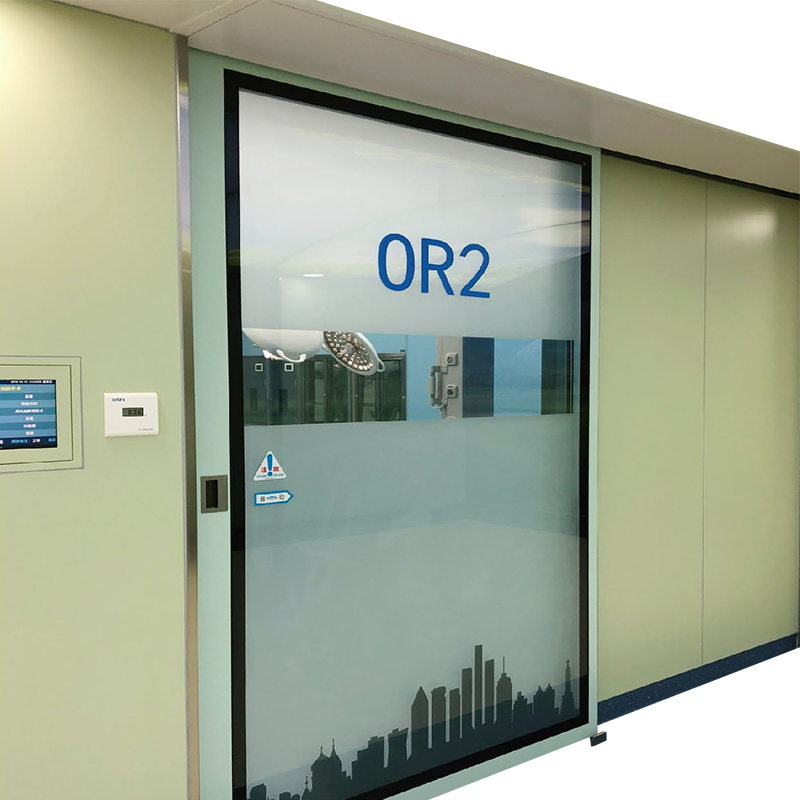

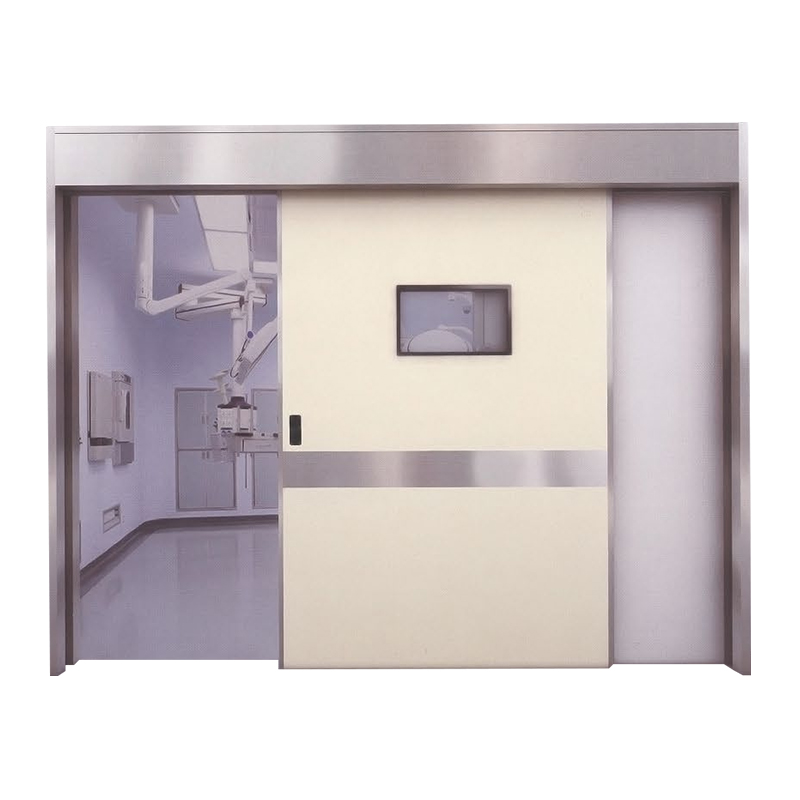

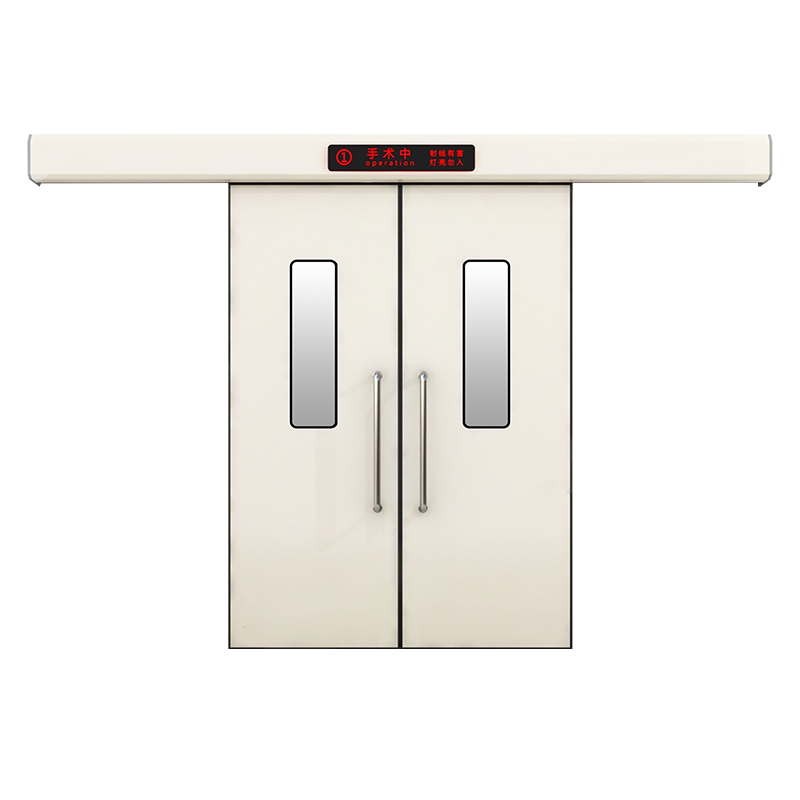

Airtight Automatic Sliding Door

Name: Airtight Automatic Sliding Door
Rating: 5 (99 reviews)

The door features an embedded power beam and a flush-mounted installation, ensuring seamless alignment with the wall for a sleek, unified appearance and enhanced aesthetic integrity.Adopting unique high-tech design, good sealing performance, preventing cross-contamination, improving clean performance, airtight performance in line with national standards (JG/T257-2009), level 8 standard. The overall operation is light and peaceful, with good sound insulation effect indoors and outdoors. Environmental and Energy Saving: The door body is sturdy and thick, opens and closes quickly, air circulation is reduced, preventing cold wind and dust from entering where cleanliness is required and maintaining constant temperature and humidity. Humanized barrier-free design for safe passage and convenient use of patients and trolleys, providing convenience.

Get A Quote Download

PREV：No previous product NEXT：No next product

Parameter
Contact Us

Product Advantages

Adopting a magnetic levitation unit, a magnetic drive, smooth running, quiet and comfortable.
The power beam and door body are directly external to the wall, fast and easy to install.

Adopting a unique high-tech design, good sealing performance, preventing cross-contamination, improving clean performance, airtight performance in line with national standards (JG/T257-2009), level 8 standard. The overall operation is light and peaceful, with good sound insulation effect indoors and outdoors.

Environmental and Energy Saving: The door body is sturdy and thick, opens and closes quickly, air circulation is reduced, preventing cold wind and dust from entering where cleanliness is required and maintaining constant temperature and humidity.

Humanized barrier-free design for safe passage and convenient use of patients and trolleys, providing convenience.

Product Parameters

Specification	Light type		Heavy type
Door type	Single type	Split type	Single type	Split type
Door weight	Max. 90KG	2*Max. 90KG	Max. 150KG	2*Max. 150KG
Door width	DW≥1800mm	DW≥1100mm	DW≥2200mm	DW≥1500mm
Supply voltage	AC220V±10%, 50~60HZ
Open-door operating speed	250~550mm/s（adjustable）
Closed-door operating speed	250~550mm/s（adjustable）

Width of single door leaf	600-2000mm
Installation method	Built-in
Motor	DC24V 60w/DC brushless）
Opening speed	30-60cm/s
Closing speed	30-60cm/s
Hold-open time	0-9s adjustable
Manual opening force	30N
Ambient temperature	-20~+50℃
Supply voltage	AC200-250V 50/60Hz
Airtight rating	Level 8

Professional Manufacturer of Cleanroom Enclosure System Jiangyin Yatai Purification Equipment Technology Co., Ltd.

Located in Jiangyin City, Jiangsu Province, on the south bank of the Yangtze River in the core area of the Yangtze River Delta, Jiangyin Yatai Purification Equipment Technology Co., Ltd. specializes in manufacturing high-performance cleanroom doors, windows, and related products. The company mainly specializes in the production of various types of YT clean door and window series, steel doors, melamine doors, clean windows, ward doors, automatic closed doors, anti-collision doors, medical doors, electric swing doors, clean doors, aluminum alloy clean doors, fast rolling doors, insulation and fireproof clean doors and dozens of other varieties. Professional Airtight Automatic Sliding Door Suppliers.

The company has a complete R&D, design, manufacturing and sales system, specializing in providing clean door and window series for sterile and dust-free workshops such as pharmaceuticals, electronics, biology, food, and hospital operating rooms. In terms of certification qualifications. As Custom Airtight Automatic Sliding Door Factory, we have passed the ISO9001 quality certification system and have successively obtained a number of practical proprietary certificates and a number of honorary certificates.
