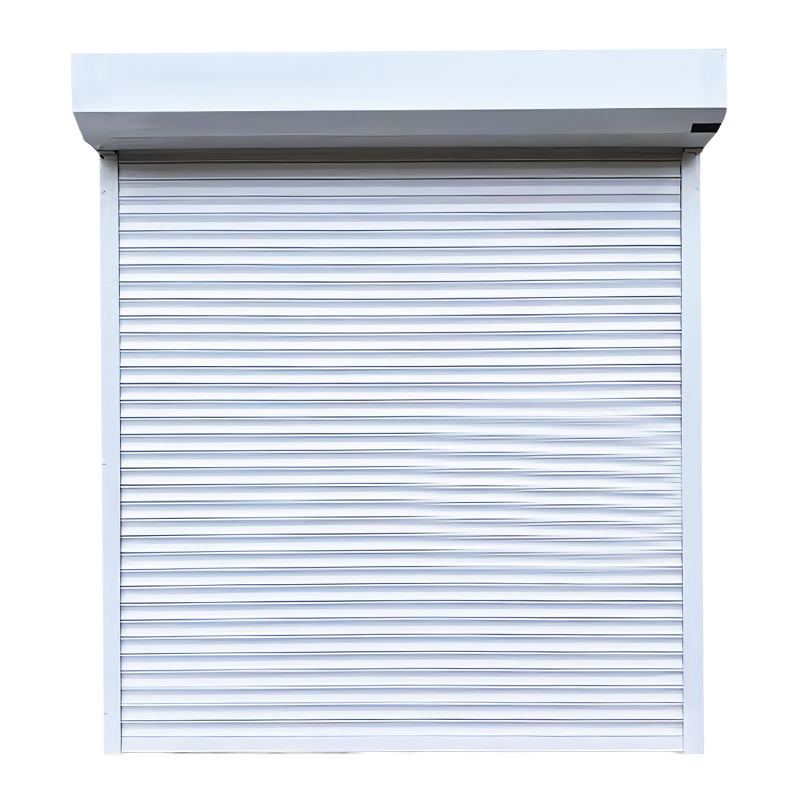

Aluminum Alloy High Speed Roll up Doors

The structure of rolling shutter doors is usually made of durable materials (such as high-strength PVC, aluminum alloy, nylon or polyester fiber, etc.), which are wear-resistant, impact-resistant, and high-temperature-resistant, and can meet the needs of frequent opening and closing in clean rooms. Aluminum Alloy High Speed Roll up Doors are equipped with advanced automatic control systems, which can control the opening and closing of the door through infrared sensors, pressure sensors or manual switches. Some fast rolling shutter door systems are equipped with emergency avoidance functions, which can automatically rise or open quickly in the event of a failure or special circumstances to avoid people being trapped or safety accidents.

Get A Quote Download

PREV：No previous product NEXT：No next product

Parameter
Contact Us

Product characteristics

1. Door panel: Double-layer aluminum alloy composite door panel, standard thickness is 40mm, door panel width is 185mm, door panel single layer thickness 1.0mm, the surface is anodized and organically colored, with a variety of colors available. The door panels are sealed with flexible joint strips, and the flexible joints have a folding lifespan of over a million times, increasing their flexibility and impact resistance, significantly improving sealing performance.
2. Track: This door utilizes a carbon steel turbine-guided load-bearing track to ensure high-speed operation of the curtain during opening and closing. The friction between the curtain and the track effectively controls noise.
3. Drive System: The motor utilizes a high-speed servo motor, 220V or 380V voltage, a digital encoder, and manual/automatic switching.
4. Control System: Utilizes a high-speed motor control system with a DSP processor chip as its core. If the motor drive cables are incorrectly connected, a protection switch will activate, causing the door to stop. A memory function allows manual operation after a power outage, allowing for immediate reset upon power-on, eliminating the need for further adjustments.
5. Opening Method: Geomagnetic induction and controller activation.
6. Operating Speed: Average 1.5m/s to 2.5m/s: 10 Over 10,000 times/year.
7. Safety Protection: Infrared safety protection. If the infrared beam is interrupted during the door's descent, the door automatically rebounds and opens. The bottom beam is equipped with an airbag.
8. Sealing: Sealed rails, the middle of the door panel, and the top and bottom of the door ensure effective isolation between the inside and outside of the door.
9. Balancing System: Balancing springs are installed inside the door posts on both sides to maintain a certain balance with the weight of the door panel, while also reducing the load on the motor during operation, ensuring smooth and effortless operation.
10. Wind Resistance: Highly wind-resistant, capable of withstanding winds up to force 10.
