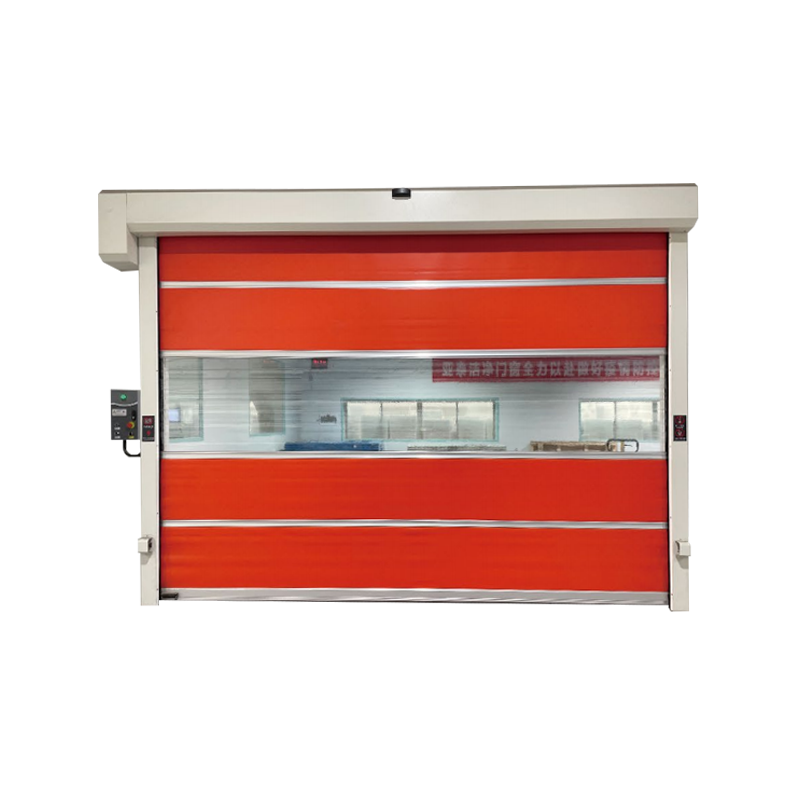

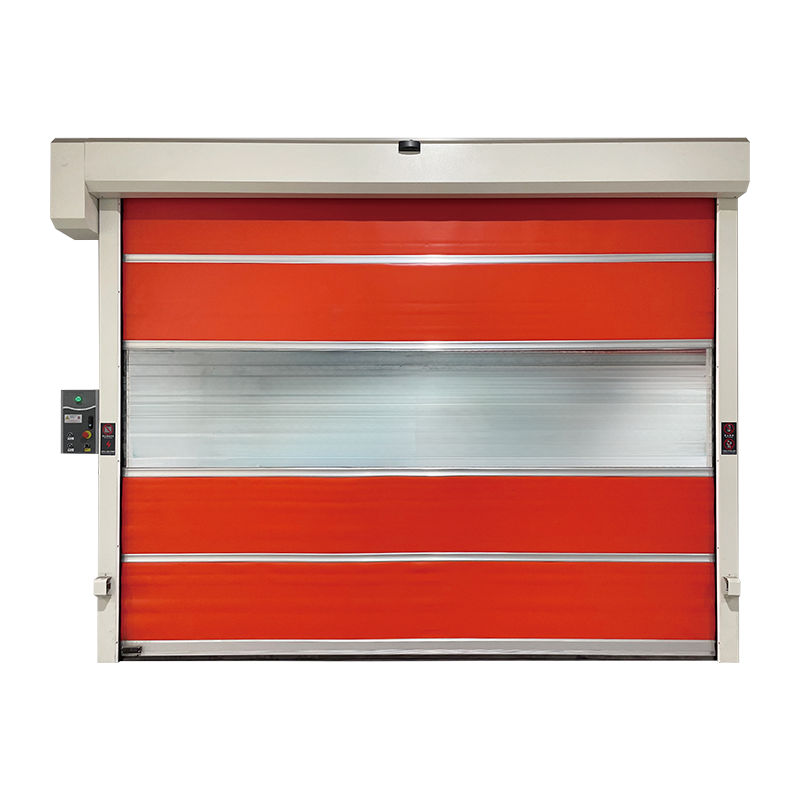

PVC High Speed Roll up Doors

The High Speed Roll up Doors adopts advanced driving technology, which enables the door curtain to open and close at high speed (usually 0.8-1.5 m/s), greatly reducing the time for the clean room to exchange air with the outside world and maintaining the stability of the clean environment. PVC High Speed Roll up Doors has many functions such as heat preservation, cold preservation, insect prevention, windproof, dustproof, sound insulation, fire prevention, odor prevention and lighting, and is widely used in clean rooms, food industry, light industry, electronics industry, pharmaceutical industry, printing, air shower room, precision machinery, logistics warehousing and other places. It can improve the satisfaction of high-performance logistics and clean places, save energy, improve air conditioning effect, close automatically at high speed, and improve efficiency.

Get A Quote Download

PREV：No previous product NEXT：No next product

Parameter
Contact Us

Product characteristics

Advantage	High sealing, high safety, reliable smoothness	Electric machine	Built-in motor/External motor (optional)
Applicable Place	Indoor places with higher requirements for color sealing	Cord fabric	1.2-2 0mm high power PVC industrial base cloth (color optional)
Effect	Energy saving, wind proof, dust proof, waterproof, insect proof, sealed, high efficiency	Viewport	Crystal transparent PVC thickness 1.5mm-2.0mm
Maximum Size	W3000mm*H3000mm	Fat protects wax ballast	Crashworthiness
Opening Speed	0.3-1.8m/s (adjustable)	Safety active protection	Humanoid sensor, infrared, Safety light frame, Safety light (optional)
Closing Speed	0.3-1.2m/s (adjustable)	Safety passive protection	Wireless airbag
Driving Mode	220v servo frame action	Opening mode	Button, hand sensor, radar, infrared, humanoid sensor, etc. (optional)
Frame	SUS304 stainless bright + aluminum profile	Certification certificate	CE certification, CANS test report of domestic authority
Scroll	114mm-160mm galvanized into aluminum alloy

Door curtain:
Segmental curtain for high-density polyester fiber (thickness 1.0 mm), transparent window, Full transparent PVC film (thickness 1.5 mm)

Portal frame structure:
2mm thick high-quality antiseptic cold-rolled steel plate multiprocess molding, silver gray (default) Color, can also choose other colors, spray, paint treatment, delicate and beautiful appearance, strong and durable.

Drive system:
Driven special motor power：0.55-1.5 kW；Voltage：220V/380V.

Control system :
IP55 boxes are compatible with various commonly used protection devices and can be used for excavation control; Adopt PLC digital programming as a whole to achieve safe passage of personnel, vehicles and goods. Manual operation, power failure, manual joystick, and easy to open or close.

Running speed:
Switching speed 0.8 ~ 1.5 m/s, down 0.6~1.0 m/s, also available. Adjusts the required up and down speed according to actual needs through the inverter.

Professional Manufacturer of Cleanroom Enclosure System Jiangyin Yatai Purification Equipment Technology Co., Ltd.

Located in Jiangyin City, Jiangsu Province, on the south bank of the Yangtze River in the core area of the Yangtze River Delta, Jiangyin Yatai Purification Equipment Technology Co., Ltd. specializes in manufacturing high-performance cleanroom doors, windows, and related products. The company mainly specializes in the production of various types of YT clean door and window series, steel doors, melamine doors, clean windows, ward doors, automatic closed doors, anti-collision doors, medical doors, electric swing doors, clean doors, aluminum alloy clean doors, fast rolling doors, insulation and fireproof clean doors and dozens of other varieties. Professional PVC High Speed Roll up Doors Suppliers.

The company has a complete R&D, design, manufacturing and sales system, specializing in providing clean door and window series for sterile and dust-free workshops such as pharmaceuticals, electronics, biology, food, and hospital operating rooms. In terms of certification qualifications. As Custom PVC High Speed Roll up Doors Factory, we have passed the ISO9001 quality certification system and have successively obtained a number of practical proprietary certificates and a number of honorary certificates.
