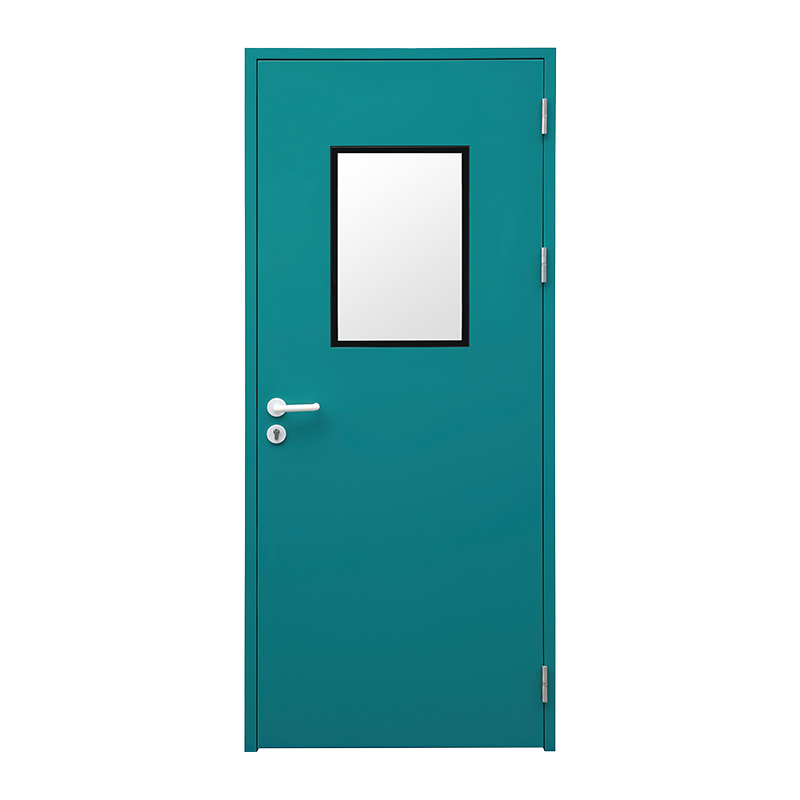

Flat Frame Type Steel Door

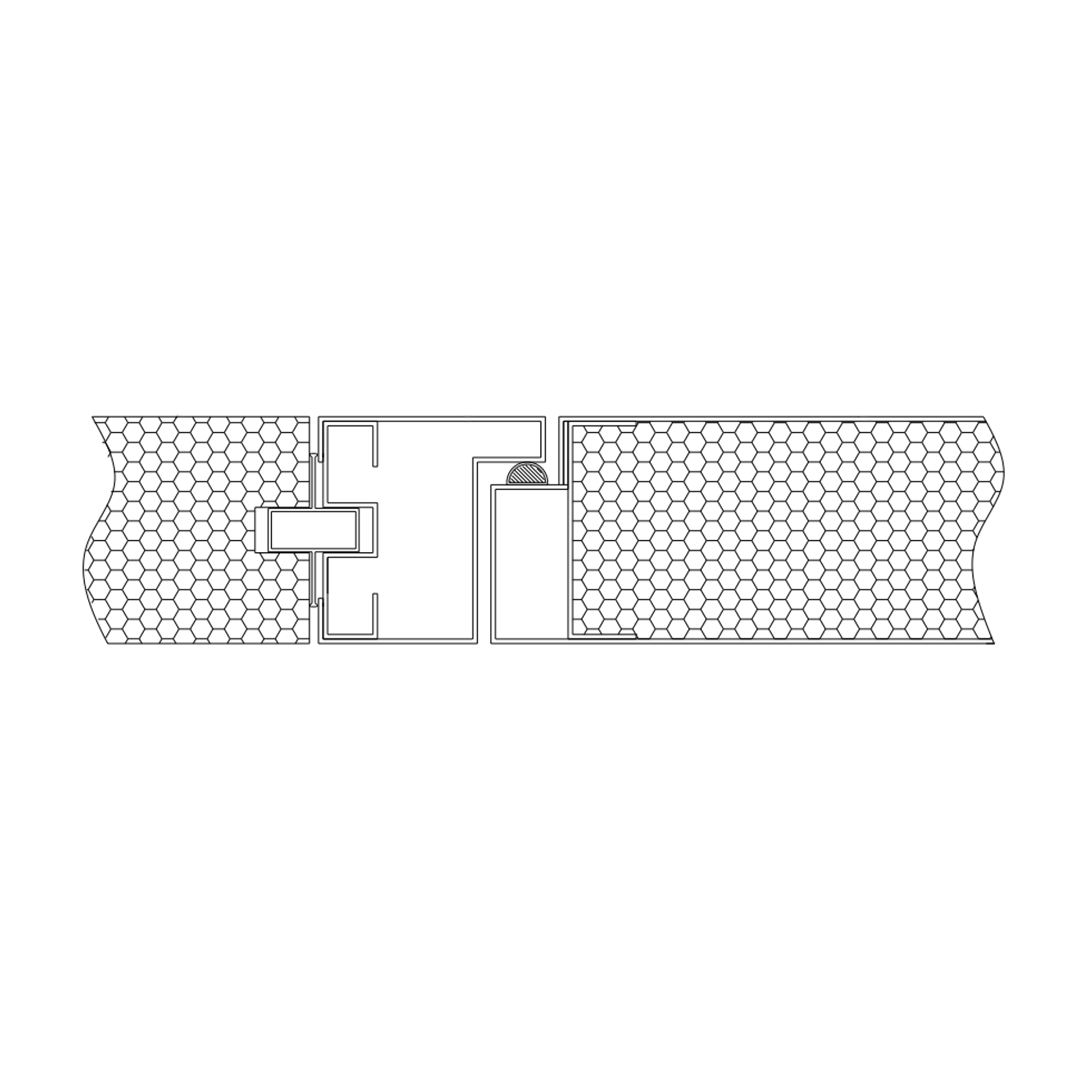

The steel door frame and door panel are made in one piece, and the surface is electrostatically sprayed. The product has no seams, no welding points, no dead corners, and is flat and smooth overall, easy to clean, and dust-free. The three sides of this door are made of reliable rubber-plastic sealing strips, and the bottom is equipped with automatic lifting sweeping strips, which are airtight and effectively ensure the indoor purification effect. The observation window uses double-layer tempered glass, with two-centimeter printed black edges (white edges) around it. The glass is flush with the surface of the door panel, which is sealed, firm, and beautiful. The thickness of the door panel is 40mm and 50mm, and the core material is filled with high-strength flame-retardant core material, which fully meets the fire protection requirements of the clean room. This door is suitable for installation on walls with 50mm-100mm handmade color steel plates and various sizes of civil walls. The door frame and the wall are connected with medium-sized aluminum, which is simple to operate. The door frame and the wall are flush on both sides.Whether viewed in terms of strength or beauty, it's a great choice for a clean room.Product size, material and special requirements can be customized according to customer needs.

Get A Quote Download

PREV：Encircled Frame Type Steel Clean Door NEXT：No next product

Parameter
Contact Us

Regular Windows For Doors

＊The regular size of the door window is: 400*600mm (can be customized according to customer's needs);

＊Screen printing around the window is: black, and white, the inner frame can be selected color according to customer requirements;

Technical parameters

Door frame shape	Flat frame, encircle frame type, butt clamp type, plug-in type (customised according to customer requirements)				Door thickness:40mm,50mm
Material	Electrolytically galvanised steel sheet with 1.5mm door frame, 1.0mm door panel and 1.2mm inner reinforcement plate.
Filling	Flame retardant paper honeycomb		Fire-retardant aluminium honeycomb	Rock wool	Polyurethane foam
Door Window	Square glass		Oval glass	Outer square and inner round glass	Single and double glazing
Hardware	Locks: Split actuator locks, continuous actuator locks, elbow pressure locks, escape locks, bumper locks, etc.
	Hinges: dismantling type, half-hidden adjustable type, spring hydraulic type, hidden type, etc.
	Sealing device: self-adhesive door leaf, embedded type of door frame, and automatic lifting type of door bottom.
Surface treatment	Spraying (outdoor fluorocarbon powder, electrostatic powder), baking paint, paint-free (the colour can be customized to meet the needs of users).
Wind pressure resistance P3(KPa)	2.8	Pneumatic	100.8KPa	Air tightness performance	q1=1.0	-q1=0.6
				q(m3/(m-h))	q2=2.1	-q1=1.5
Door weight m²/KG	Paper honeycomb core		Aluminium honeycomb core	Rock wool core	Polyurethane core
	21.5KG		22.3KG	24.5KG	26.0KG

Remarks: We can accept customer's demand to make non-standard products with different specifications and models, and the doors and windows can be selected with different shapes and grades of glass, such as: toughened glass, fireproof glass, bullet-proof glass.

Usage

Suitable for color steel plates, civil engineering walls, light steel keel structures, etc.

Characteristics

The door boasts good sealing properties, robust strength, effortless opening, and adaptable installation. It features a door frame and color steel plate that seamlessly integrate with the central aluminum, aligning flush with the wall's sides and matching the partition wall's thickness. The product's dimensions, materials, and any special specifications can be tailored to meet specific usage demands.
