Technical parameters
Door frame profile | Frame-wrapped (conventional frame thickness: 50mm, 75mm, 100mm) | |||
Filling | Any size of hole can be opened according to the actual site | |||
Door material | Flame retardant paper honeycomb | Fire-retardant aluminium honeycomb | Rock wool | Polyurethane foam |
Hardware | Yatai custom stainless steel hinge, aluminium alloy hinge | |||
YT one-piece actuator lock | YT split actuator lock | Elbow press lock | Available according to customer's option | |
Surface colour | Sand Electro-White | Spraying | Electrophoresis | Available according to customer's option |
Installation instructions

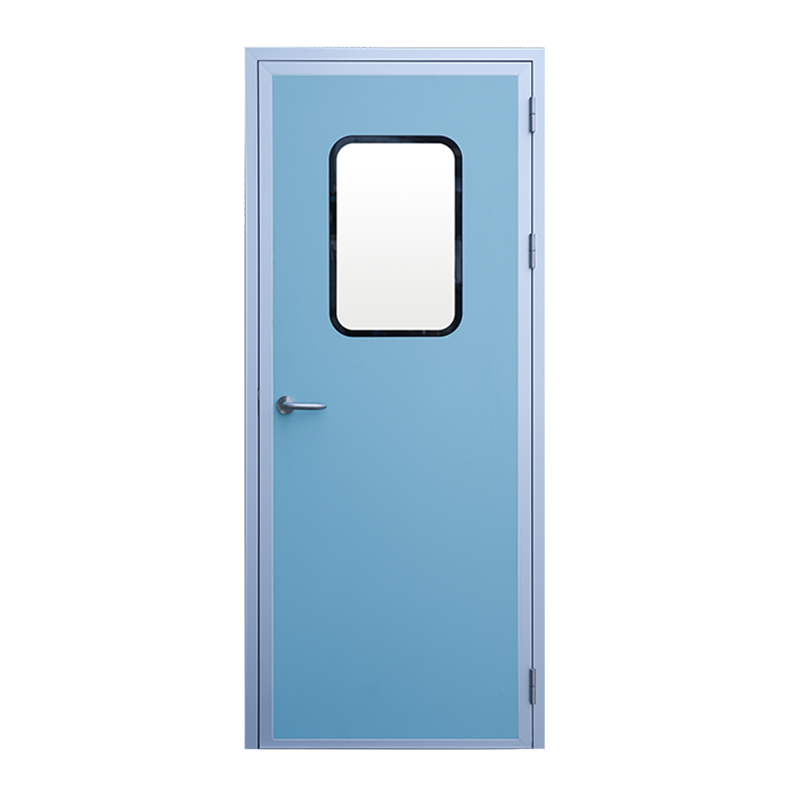

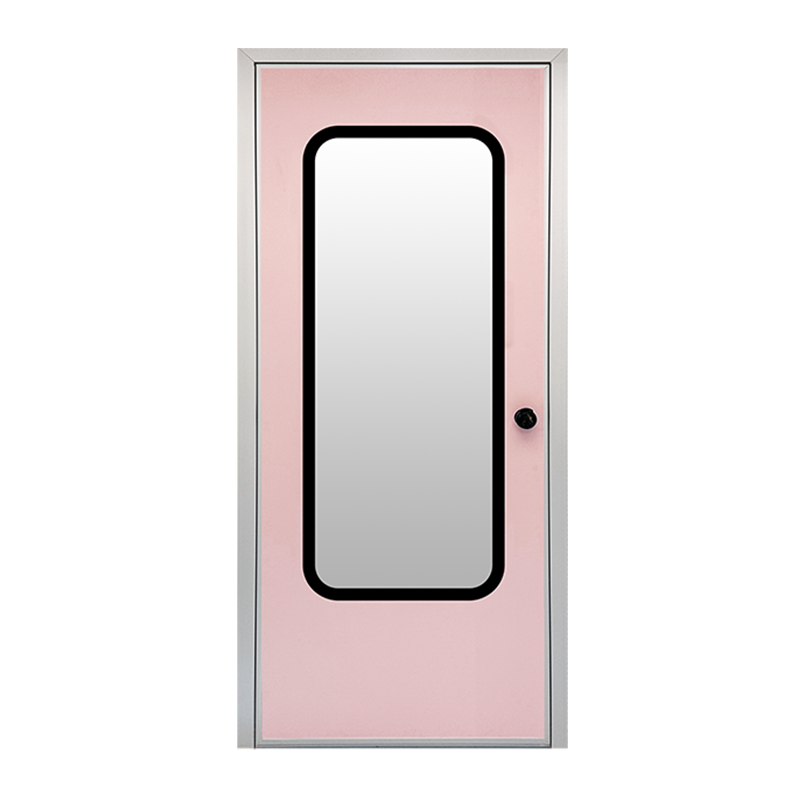

YT-LHJ aluminium alloy wrapped frame colour steel plate clean door is mainly used for on-site opening or reserved hole.

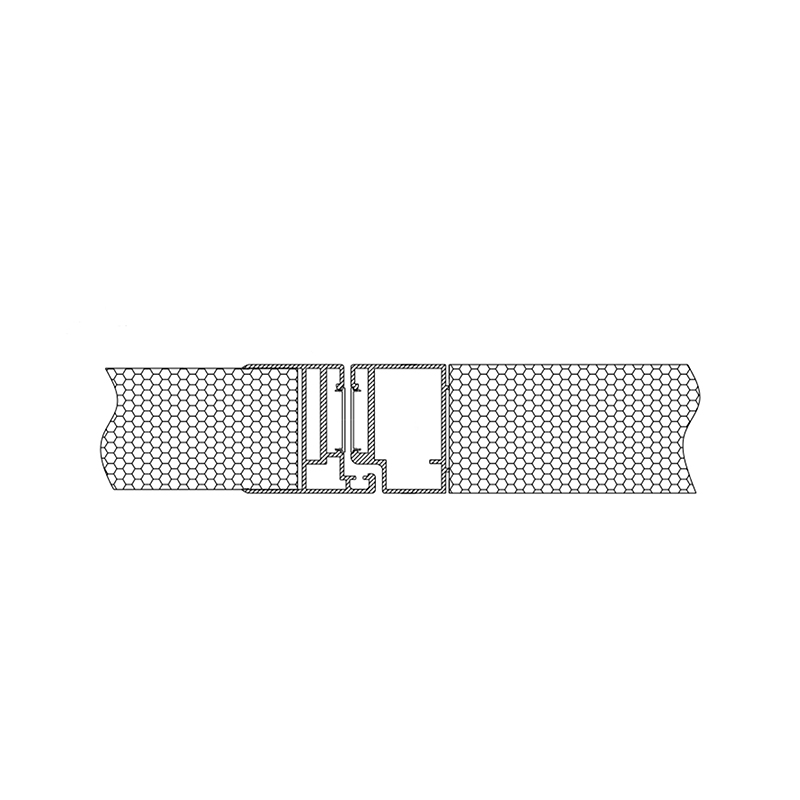

The thickness of the door frame can be customised according to the customer's needs, and when it is installed, it is lined with embedded body of reinforced channel steel (provided by our company), and then stuck in with aluminium profile.
The thickness of door frame can be customised according to customers' requirements.
Large doors, single, double, triple and quadruple folding doors can be customised according to customers' needs.
