Technical parameters
| Door frame shape | Flat frame, encircle frame type, butt clamp type, plug-in type (customised according to customer requirements) | Door thickness:40mm,50mm | ||||
| Material | Imported and Domestic MDF: 4.0~5.0mm, door frame adopts YT aluminium alloy series. | |||||
| Filling | Flame retardant paper honeycomb | Fire-retardant aluminium honeycomb | Rock wool | Polyurethane foam | ||
| Door Window | Square glass | Oval glass | Outer square and inner round glass | Single and double glazing | ||
| Hardware | Locks: Split actuator locks, continuous actuator locks, elbow pressure locks, escape locks, bumper locks, etc. | |||||
| Hinge: YT stainless steel dismounting type, YT aluminium alloy dismounting type, etc. | ||||||
| Sealing device: self-adhesive door leaf, door frame embedded type, door bottom automatic lifting type. | ||||||
| Surface treatment | Bridged surface, glossy surface (colours are user selectable) | |||||
| Wind pressure resistance P3(KPa) |
2.8 | Pneumatic | 100.8KPa | Air tightness performance | q1=1.0 | -q1=0.6 |
| q(m3/(m-h)) | q2=2.1 | -q1=1.5 | ||||
| Door weight ㎡/KG |
Paper honeycomb core | Aluminium honeycomb core | Rock wool core | Polyurethane core | ||
| 21.5KG | 22.3KG | 24.5KG | 26.0KG | |||

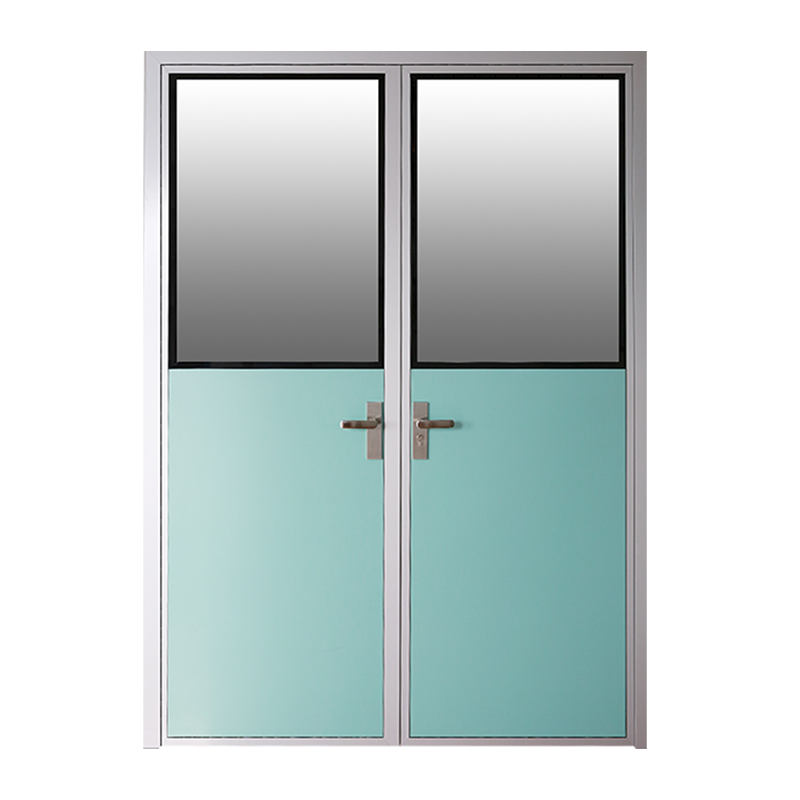

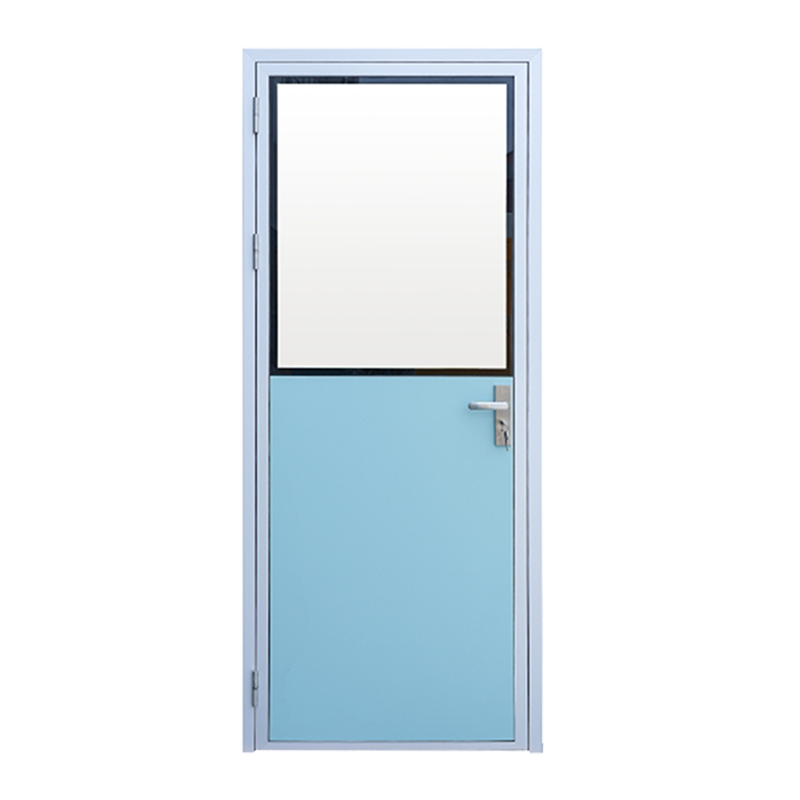

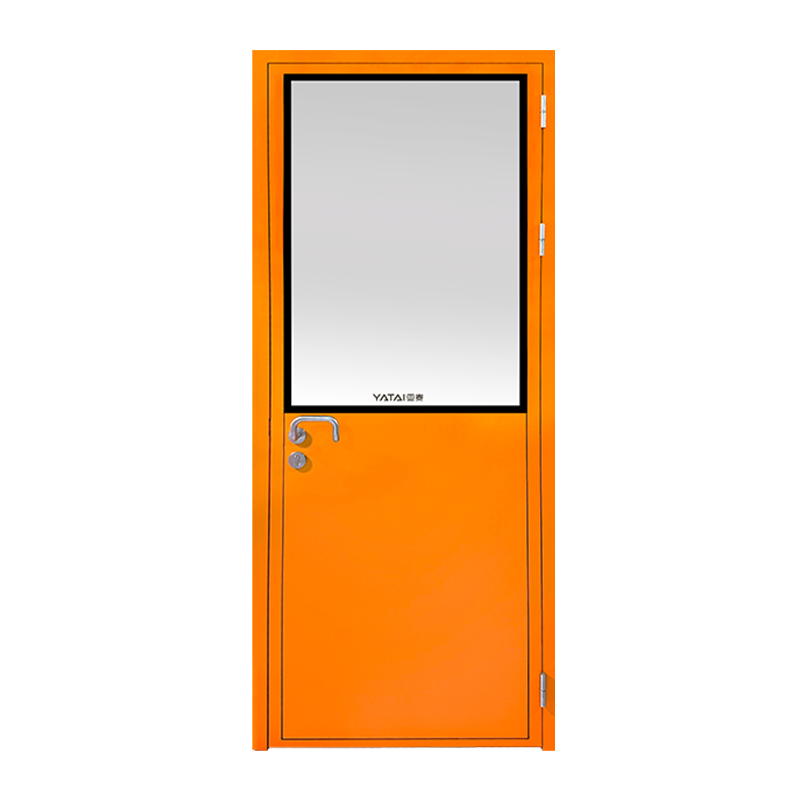

Model: LHJ-50-100
Specifications: conventional, non-standard, and can accept special design requirements of users (customized three-fold and four-fold doors can be accepted)
Materials: The door frame is made of XR aluminium alloy. The leaves are made of colored steel plates, painted steel, and unpainted steel.
Filling: flame-retardant paper honeycomb, aluminum honeycomb, rock wool sandwich, polyurethane foam.
Window: square, oval, single-layer glass, double-layer printed glass.
Surface: spraying, oxidation, sand whitening, electrophoresis, etc.
Hardware: A6 fireproof lock, SS sand steel joint lock, ball pressure handle lock.
Seal: compression leather strip, door bottom lifting seal strip.
Color: can be baked according to user requirements.
Remarks: We can accept customers' requirements to make non-standard products with different specifications and models, and the doors and windows can be made of different shapes and grades of glass, such as tempered glass, fireproof glass and bulletproof glass.
Usage
Suitable for clean doors in hospitals, electronics, pharmaceuticals, biology, food and other clean sterile and dust-free workshops, as well as business doors in non-clean areas.
Characteristics
Diamine ester plates for clean doors are standard plates with fire resistance rating B, non-toxic, odorless, harmless, germ-resistant, fire-resistant, wear-resistant, scratch-resistant, water-resistant and shock-resistant, capillary-free, pollution-resistant and easy to clean and maintain; It comes in a variety of colors, and the colors do not fade and last as long as if it were new, etc. The door frame is surrounded by aluminium alloy double sealing material, which has good sealing performance, high strength, easy opening, flexible installation and beautiful features.
Surface Material Characteristics
Diamine resin board has professional antibacterial, stain resistance, water resistance, moisture resistance, heat resistance, weather resistance, drug resistance, abrasion resistance, impact resistance and easy to clean and maintain the characteristics of a full range of plain colours, commonly used surfaces: matte silk surface, brushed surface, matte orange surface, glossy surface and so on.
Installation

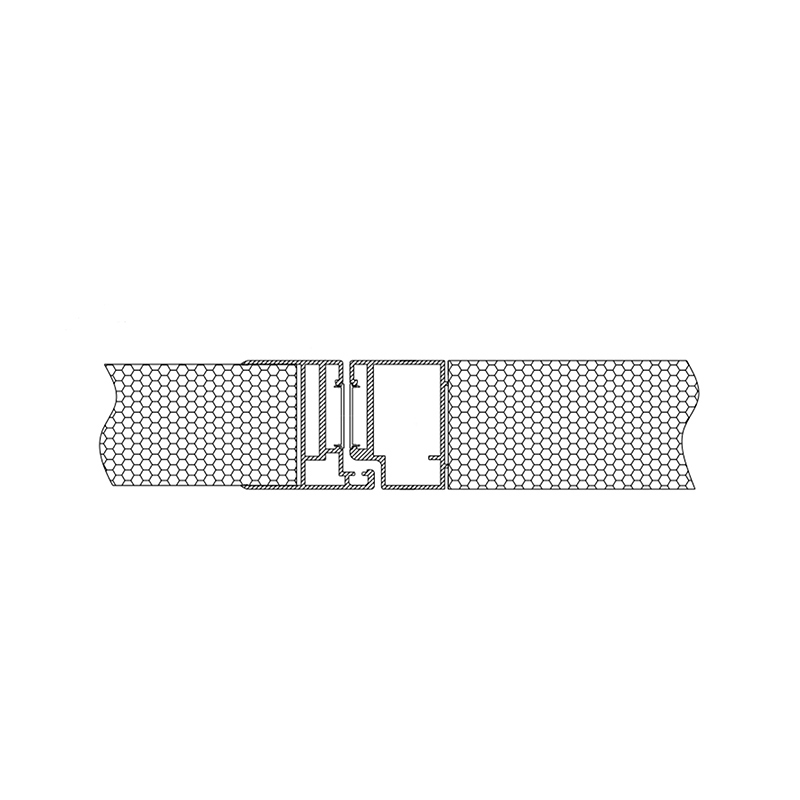

Connect with the middle aluminium connector, then use the fasteners (drilling screws provided by our company) to fix, pay attention to keep the installation level and verticality, then use the special decorative strips to cover it, and then use the special silicone sealing around the door frame to keep the integrity and aesthetic properties.
