Butt Clamp type Steel Door

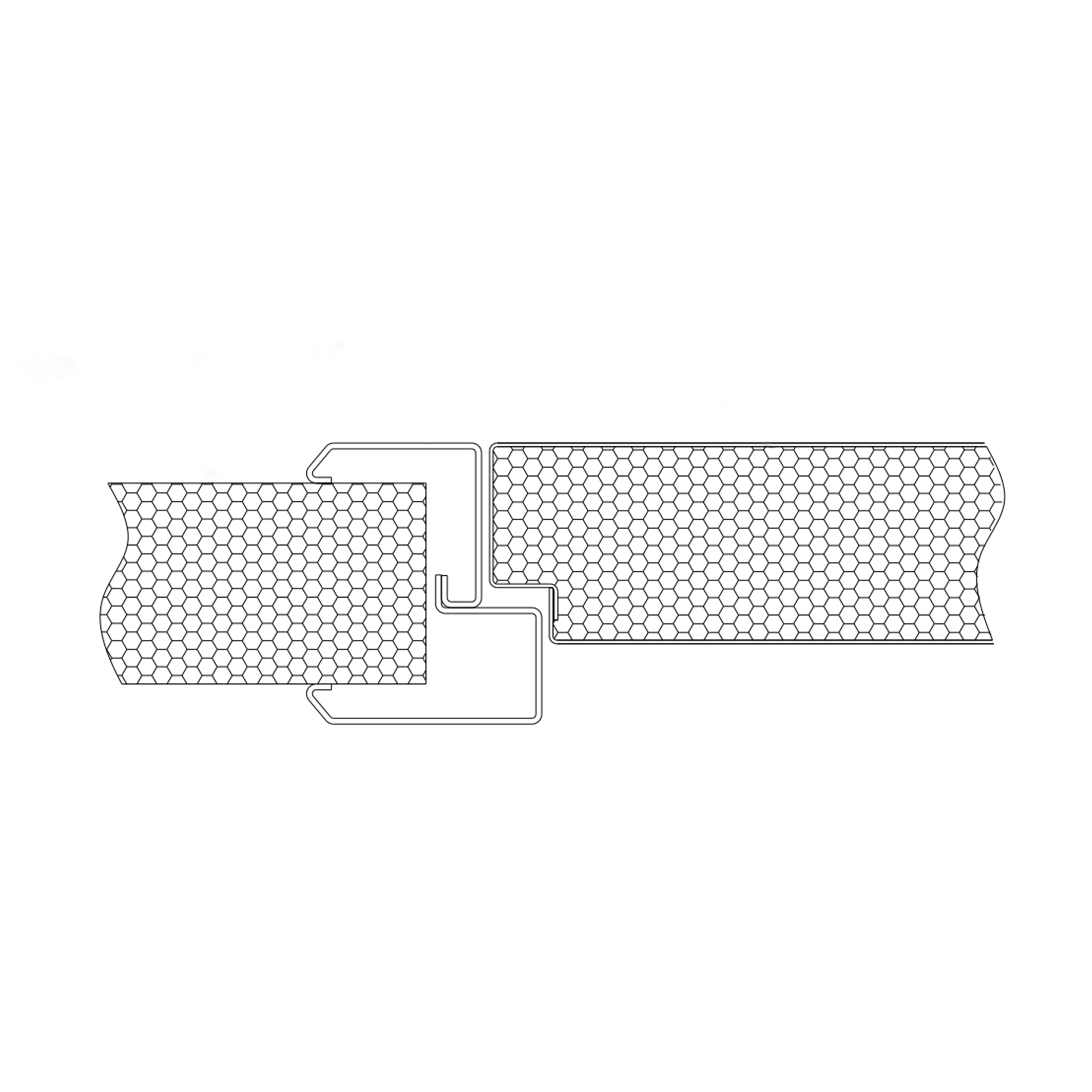

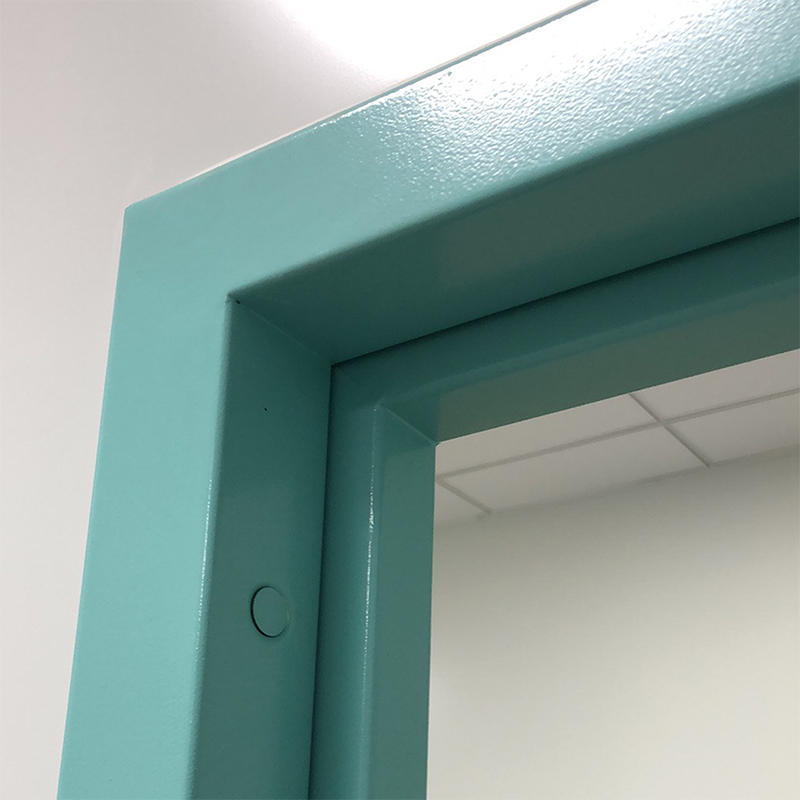

Butt Clamp type Steel Door Applicable to color steel plates, civil walls, light steel keel structures, etc.Mainly suitable for reserved door openings on site, on-site openings, civil walls, light steel keel walls, etc. The door frame adopts two-piece clamping type as a whole, which is convenient and flexible, the wall thickness can be any size, and the wall and door frame are fixed with hidden bolts. The product size and special requirements can be customized according to the actual requirements of customers.

Get A Quote Download

PREV：No previous product NEXT：Encircled Frame Type Steel Clean Door

Parameter
Contact Us

Regular Windows For Doors

＊The regular size of the door window is: 400*600mm (can be customized according to customer's needs);

＊Screen printing around the window is: black, and white, the inner frame can be selected color according to customer requirements;

Technical parameters

Door frame shape	Flat frame, encircle frame type, butt clamp type, plug-in type (customised according to customer requirements)				Door thickness:40mm,50mm
Material	Electrolytically galvanised steel sheet with 1.5mm door frame, 1.0mm door panel and 1.2mm inner reinforcement plate.
Filling	Flame retardant paper honeycomb		Fire-retardant aluminium honeycomb	Rock wool	Polyurethane foam
Door Window	Square glass		Oval glass	Outer square and inner round glass	Single and double glazing
Hardware	Locks: Split actuator locks, continuous actuator locks, elbow pressure locks, escape locks, bumper locks, etc.

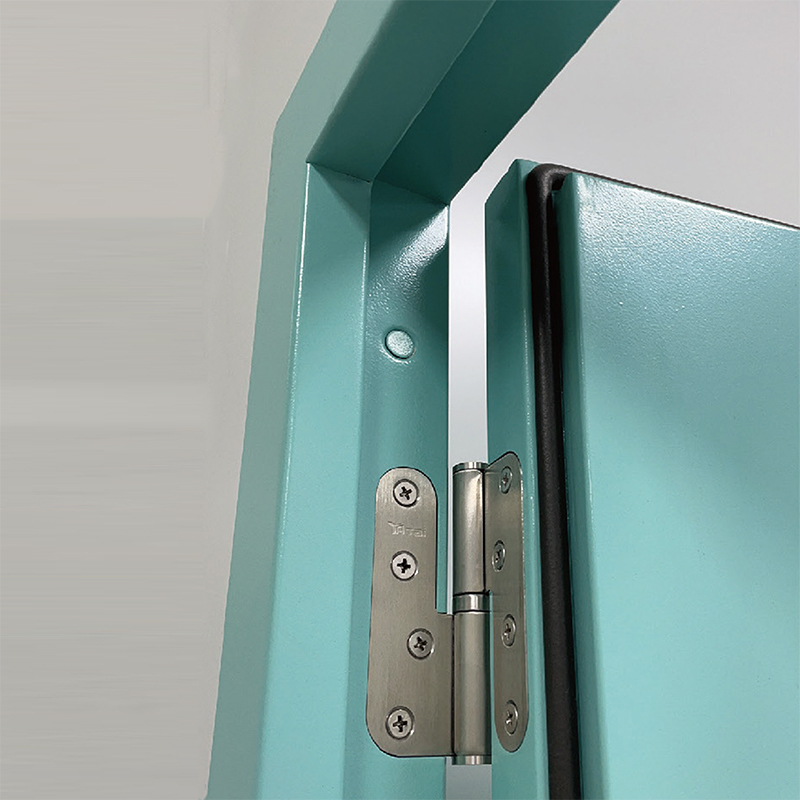

	Hinges: dismantling type, half-hidden adjustable type, spring hydraulic type, hidden type, etc.
	Sealing device: self-adhesive door leaf, embedded type of door frame, and automatic lifting type of door bottom.
Surface treatment	Spraying (outdoor fluorocarbon powder, electrostatic powder), baking paint, paint-free (the colour can be customized to meet the needs of users).
Wind pressure resistance P3(KPa)	2.8	Pneumatic	100.8KPa	Air tightness performance	q1=1.0	-q1=0.6
				q(m3/(m-h))	q2=2.1	-q1=1.5
Door weight m²/KG	Paper honeycomb core		Aluminium honeycomb core	Rock wool core	Polyurethane core
	21.5KG		22.3KG	24.5KG	26.0KG
